Cardan Shaft & Universal Joints
We supply quality cardan shaft from Europe which have the combination of experience, in process industries ranging from food production to steel and paper mills, in delivering power from stationary engines, electric motors and turbines.
We stock parts here is Singapore to ensure that you have a smooth operation in your factory.
Applications: Cement Crusher, Engine Dyno System, Wire Industries, Plastic Industry, Automotive, Railway Rolling-stock, Textile Industries, Pumping Station, Waste Water Treatment, Pulp & Paper, Steel Industries.

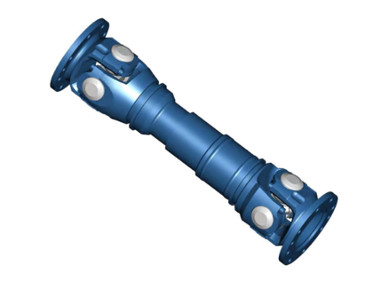

390/392/492/498 Series
The 390 series shaft maximum bearing life in confine space.
- Torque range Tcs 60KNm - 1.2MNm
- Flange Diameter 225 - 1200mm
- Key-advantages, split-caps yoke for easy changing of universal joints
- 100% assembled and Made in Germany
- Optional add-on: Key-faced flange, Rislan coated spline, grease nipple on bearing caps
Can replace GWB, Voith, Gewes, Spicer, Najico & Gewes.
Applications: Pulp & Paper, Steel, Cement, Chemical, Pumps, Ship propulsion system,

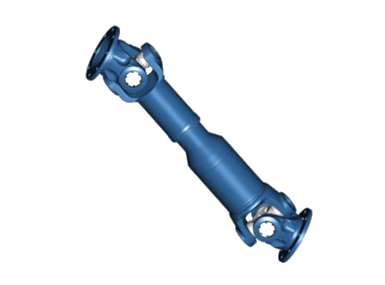

Cardan Shaft 886 Series
The 886 series shaft maximum bearing life in confine space.
- Torque range Tcs 21KNm- 210 KNm
- Flange Diameter 150 - 435mm
- Shorter lead-time
- Optional add-on: Key-faced flange, Rislan coated spline, grease nipple on bearing caps
- 100% assembled and Made in Germany
Can replace GWB, Voith, Gewes, Spicer, Najico & Gewes.
Applications: Pulp & Paper, Steel, Cement, Chemical, Pumps, Ship propulsion system,

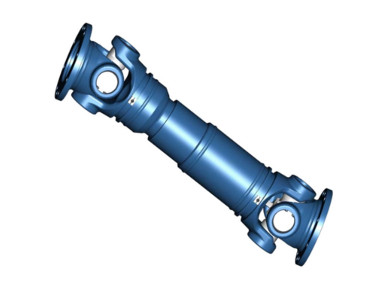

Cardan Shaft 587 Series
- Torque range Tcs 43 - 57KNm
- Flange diameter 225 - 285mm
- Low maintenance
- Partly Rilsan coated
- 100% assembled and Made in Germany
Can replace GWB, Voith, Gewes, Spicer, Najico & Gewes.
Applications: Rolling Mills, Pulp and Paper, Crane, Cement Plant, Pumps, Chemical Plants
Model: 587.50, 587.55, 587.60
DIN flanges

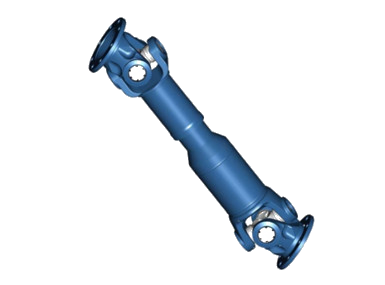

Cardan Shaft 687 Series
- Torque range Tcs 2.4KNm - 35KNm
- Flange diameter 90 - 250mm
- Closed bearing eyes
- Low maintenance
- Rilsan coated
- Stock components in Singapore, assembled and balanced under a GKN approved workshop
- Wide range of configuration is available
- Very short lead time
Applications: Rolling mills, pulp and paper, crane, cement plant, pumps, chemical plants
Model: 687.16, 687.20, 687.25, 687.30, 687.35, 687.40, 687.45, 687.47, 687.55, 687.60, 687.65.
DIN, SAE, KV flanges
Universal Joint | Cross Joint
We have a wide range of Universal Joints that is interchangeable with many major brands in the world. We keep stock of these joints in Singapore and can be dispatch to you for your urgent needs.
- Our stocks are from Europe
- Grease nipple on bearing caps option is available
- Sealed for life models is available
- Specifications of roller bearing manufacturers such as INA Schaeffler and SKF.
Interchangeable brands: GKN, GWB, Gewes, Voith, Scania, ELBE, Spicer, Walterscheid, Hardy Spicer, Maina
Disclaimer: Manufacturers' names or trademarks used on this website are for identification purposes only. RTT is not affiliated with these companies unless otherwise stated.
