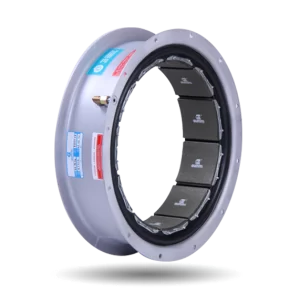

Gummi FK Element Brake and Clutch

The Gummi FK Element use a neoprene rubber, reinforced by cord materials that quickly expands inward when pressurised.
This action causes the friction shoes attached to the inside diameter of the tube to engage to the cylindrical surface of the brake drum.
When de-pressurised, the neoprene rubber will move outwards, causing the friction shoe to dis-engage to the brake drum.
It is designed and built to provide dependable brake or clutch operation, suitable for cyclical, high speed as well as general mechanical power transmission.

Applications: Cement Crusher, Drawworks, Main Main propulsion, Marine Tanker Pump, Can Making Machinery, Commercial Laundry Equipment, Metal Forming Machinery, Rubber processing Machinery, Tire Building Machinery, Oil Field Machinery, Ceramic & Clay Machinery, Pulp & Paper and Steel Industries.

Gummi FK Clutch


When Pressurised > Engage

When De-pressurised > Dis-engage

Benefits of Gummi FK Element Brake Clutch

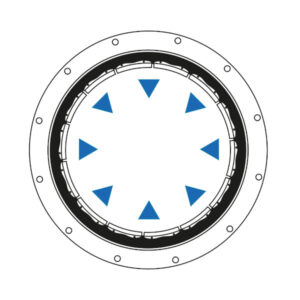

Self Adjustment

The element tube aill automatically compensate as the friction shoe wears down, eliminating the necessity of adjustment, without reducing the torque capacity

No Lubrication Required

There is no crucial sliding component, which require lubrication, thus saving maintenance time, as well as money

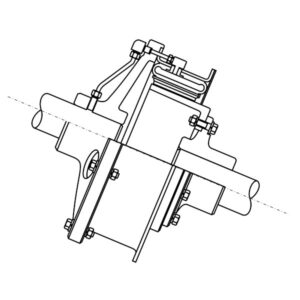

Any Plane Operation

The construction design and characteristics, combines with the centrifugal force, allows the clutch to operate in any plane.

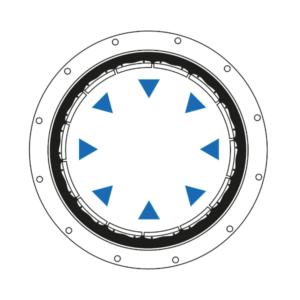

Single Moving Component

The tube is the only moving component, there is no spring or sliding parts, saving maintenance hours.

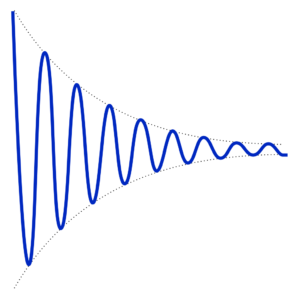

Shock-Absorbing Effect

Due to the working principle that the tube transmits torque through its sidewall, and the properties of the neoprene rubber material, it works like a shock absorber.
It absorbs the shock loads, protecting the drive components of the transmission as well as reducing effect of torsional vibration.

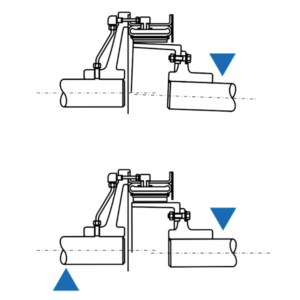

Flexible Coupling

The neoprene rubber properties of the tube allows the drive to accommodate minor parallel or angular misalignment.

Repair of FK Element Brake Clutch

As the tube is vulcanised to the rim, the only parts that can be repair will only be the friction shoe assembly, Shoe Pin and Lock Wire.

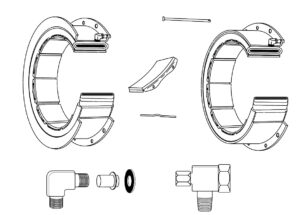

Gummi FK Clutch Parts

Sizes of Gummi FK Element Brake Clutch

SIZE
Norminal Torque
lb.in @75psi
N.m @ 5.2 Bar
3FK150
360
41
4FK200
1000
113
5FK200
1460
165
6FK200
2040
231
8FK250
4290
485
10FK300
8150
921
12FK350
13300
1500
14FK400
19700
2230
16FK500
35200
3980
18FK500
44000
4970
20FK500
53600
6060
22FK500
62300
7040
24FK500
75000
8480
26FK525
92400
10400
28FK525
106000
12000
30FK525
121000
13700
32FK525
13700
15500
36FK525
172000
19400
40FK525
211000
23800
45FK525
260000
29400

Interchangeable Brand and Sizes

Interchangeable Brands: Eaton Airflex, Fawick, NPR, Dellner Bubenzer, Gummi, Oil State

Interchangeable Sizes:
3CB200, 4CB200, 5CB200, 6CB200, 8CB250, 10CB300, 12CB350, 14CB400, 16CB500, 18CB500, 20CB500, 22CB500, 24CB500, 26CB525, 28CB525, 30CB525, 32CB525, 36CB525, 40CB525, 45CB525, AFK25, AFK50, AFK150, AFK250, AFK400, AFK500, AFK600, AFK700, AFK850, AFK1050, AFK1250, AFK1450, AFK1650, AFK2050

Other Components for Gummi FK Brake Clutch

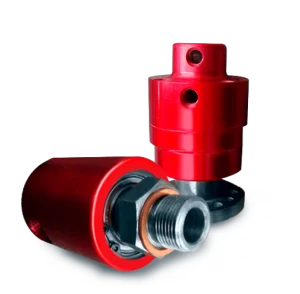

Rotary Union

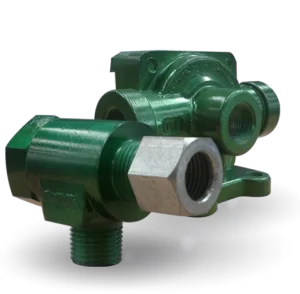

Quick Release Valve (QRV)

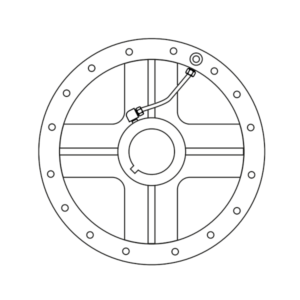

FK Spider

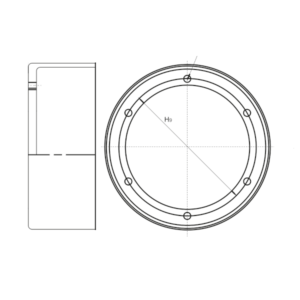

Internal Drum

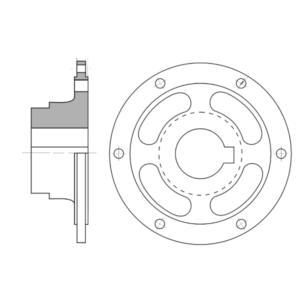

Drum Hub

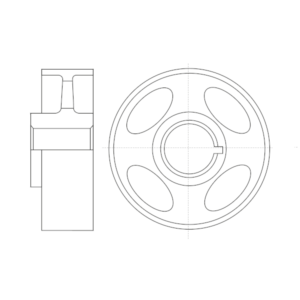

Integral Drum Hub
